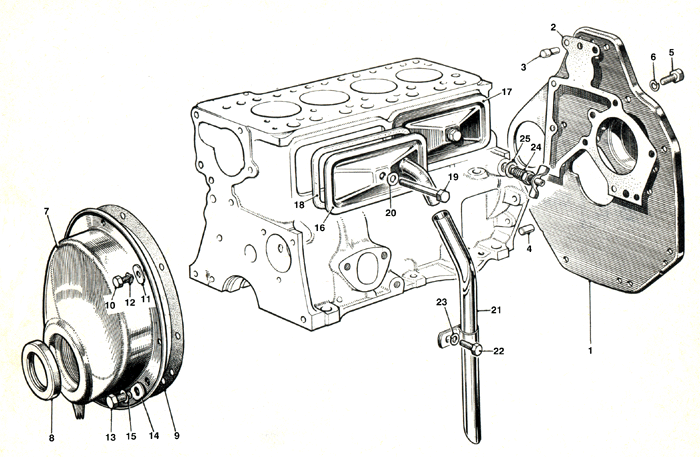

PAGE 4 EXTERNAL ENGINE
Back to INDEX
|
|
| # | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL | | 1 | 2A569 | PLATE-ENGINE MOUNTING (REAR) | | 1 | N/A | Sell | | 2 | 2A123 | JOINT-MOUNTING PLATE TO CRANKCASE | | 1 | N/A | Sell | | 3 | 1K52 | DOWEL-MOUNTING PLATE (TOP) | | 1 | N/A | Sell | | 4 | 1G752 | DOWEL | | 1 | N/A | Sell | | 5 | HZS0505 | SCREW-MOUNTING PLATE TO CRANKCASE | | 7 | N/A | Sell | | 6 | LWZ305 | WASHER, SPRING | | 7 | N/A | Sell | | 7 | 2A552 | COVER, FRONT, T/C | TO (E)H37646 | 1 | N/A | Sell | | | 2A937 | COVER-FRONT (WITH OIL CATCHER AND SEAL) | FROM (E)H37647 | 1 | N/A | Sell | | 8 | 2K7140 | TIMING COVER, OIL SEAL | TO (E)H37646 | 1 | BUY | Sell | | | 2A989 | T/C SEAL,88G561 | FROM (E)H37647 | 1 | N/A | Sell | | 9 | 1A2093 | JOINT FOR FRONT COVER | | 1 | N/A | Sell | | 10 | HZS0403 | SCREW-FRONT COVER TO MOUNTING PLATE | | 6 | N/A | Sell | | 11 | 2K5197 | WASHER OVAL | | 6 | N/A | Sell | | 12 | LWN204 | WASHER, SPRING | | 6 | N/A | Sell | | 13 | HZS0505 | SCREW-MOUNTING PLATE TO CRANKCASE | | 4 | N/A | Sell | | 14 | 2K7440 | WASHER OVAL | | 4 | N/A | Sell | | 15 | LWZ305 | WASHER, SPRING | | 4 | N/A | Sell | | 16 | 12H155 | COVER-CYLINDER SIDE-FRONT (WITH ELBOW) | | 1 | N/A | Sell | | 17 | 12H152 | COVER-CYLINDER SIDE-REAR | | 1 | N/A | Sell | | 18 | 12A24 | GASKET,SIDE COVER (CORK) | | 2 | BUY | Sell | | 19 | HBZ0515 | BOLT-SIDE COVER TO CYLINDER BLOCK | | 2 | N/A | Sell | | 20 | 2K4958 | WASHER FIBRE | | 2 | BUY | Sell | | 21 | 2A118 | PIPE, VENT, CRANKCASE | | 1 | BUY | Sell | | 22 | HZS0505 | SCREW-MOUNTING PLATE TO CRANKCASE | | 1 | N/A | Sell | | 23 | LWZ205 | SPRING WASHER, 5/16 | | 1 | N/A | Sell | | 24 | 2A817 | TAP, WATER DRAIN | SPRITE MKI | 1 | N/A | Sell | | 25 | 2K4975 | WASHER | | 1 | N/A | Sell | | 24 | 3H576 | TAP, WATER DRAIN | SPRITE MKII & MIDGET MKI | 1 | BUY | Sell |
|
 |
|
