PAGE 8 ENGINE CONTROLS
Back to INDEX
|
|

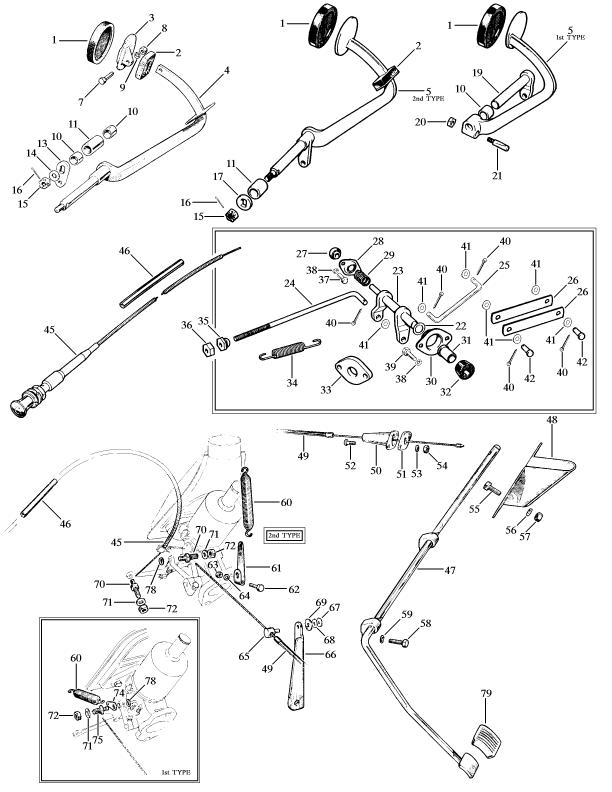

| # | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL | | 1 | ACA5359 | PEDAL PAD | | 1 | BUY | SELL | | 2 | AAA1938 | PAD-PEDAL SEALING | | 1 | N/A | SELL | | 3 | 131804 | PAD | LHD. | 1 | N/A | SELL | | 4 | 184187 | PEDAL-CLUTCH | LHD. | 1 | N/A | SELL | | 5 | 128640 | PEDAL-CLUTCH | RHD, TO (C) 433613. | 1 | N/A | SELL | | | ACA5222 | PEDAL-CLUTCH | RHD, FROM (C) 433613. | 1 | N/A | SELL | | 7 | AJD6207Z | BOLT | | 1 | N/A | SELL | | 8 | AJD8105Z | NUT | | 1 | BUY | SELL | | 9 | LWZ205 | SPRING WASHER, 5/16 | | 1 | N/A | SELL | | 10 | AAA1423 | BUSH | | 1/2 | BUY | SELL | | 11 | AAA1939 | SPACER | FROM (C) 434584. | 1 | N/A | SELL | | 13 | ACA5003 | LEVER-CLUTCH | TO (C) 578026. | 1 | N/A | SELL | | | ACA5442 | LEVER-CLUTCH | FROM (C) 578027. | 1 | N/A | SELL | | 14 | PWZ106 | WASHER | | 1 | N/A | SELL | | 15 | AJD8406Z | NUT | | 1 | BUY | SELL | | 16 | SCP2 | COTTER PIN | | 1 | N/A | SELL | | 17 | ACA5228 | WASHER-LOCATING | RHD, FROM (C) 433613. | 1 | N/A | SELL | | 19 | ACA5006 | SHAFT, W/LEVER. | RHD. | 1 | N/A | SELL | | 20 | AJD8104Z | NUT | RHD. | 1 | N/A | SELL | | 21 | 128638 | COTTER | RHD. | 1 | N/A | SELL | | 22 | ARH517 | WASHER | | 1 | BUY | SELL | | 23 | ACA5440 | SHAFT-RELAY | | 1 | BUY | SELL | | 24 | ACA5004 | ROD-RELAY | | 1 | BUY | SELL | | 25 | ACA5002 | ROD-RELAY | | 1 | N/A | SELL | | 26 | ACA5437 | PLATE-RELAY | 1098. | 2 | BUY | SELL | | 27 | ACA5121 | CTL BUSH | | 1 | BUY | SELL | | 28 | 2A5025 | RETAINER-BEARING | | 1 | BUY | SELL | | 29 | AAA3751 | SPRING, RELAY SHAFT | | 1 | BUY | SELL | | 30 | AAA3748 | BRACKET | | 1 | N/A | SELL | | 31 | AAA3750 | BUSH, CLUTCH | | 1 | BUY | SELL | | 32 | AAA1626 | | | 1 | BUY | SELL | | 33 | AAA3749 | PACKING-BRACKET | RHD. | 1 | BUY | SELL | | 34 | 1G5999 | SPRING-RETURN | TO (C) 990289. | 1 | N/A | SELL | | | AAA531 | SPRING-RETURN | FROM (C) 990290. | 1 | N/A | SELL | | 35 | 2A5022 | NUT-ENGINE ROD | TO (C) 198689. | 1 | N/A | SELL | | | ACA5009 | NUT-ENGINE ROD | FROM (C) 198690. | 1 | BUY | SELL | | 36 | FNZ204 | JAM NUT 1/4 UNF | TO (C) 198689. | 1 | N/A | SELL | | | FNZ205 | NUT | FROM (C) 198690. | 1 | N/A | SELL | | 37 | HZS404 | SCREW | | 2 | N/A | SELL | | 38 | LWZ304 | WASHER, SPRING | | 4 | N/A | SELL | | 39 | HZS406 | BOLT | | 2 | N/A | SELL | | 40 | SCP3 | COTTER PIN | | 3 | BUY | SELL | | 41 | PWZ105 | FLAT WASHER, 5/16 ID | | 3/5 | N/A | SELL | | 42 | CLZ515 | CLEVIS PIN | 1098. | 2 | BUY | SELL | | 45 | ACA5101 | CABLE-CHOKE | TO (C) 448714. | 1 | N/A | SELL | | | ACA5316 | CABLE-CHOKE | FROM (C) 448801. | 1 | N/A | SELL | | | ACA8019 | CABLE-CHOKE | FROM (C) 750470. | 1 | N/A | SELL | | | ACA8227 | CABLE-CHOKE | FROM (C) 1153739. | 1 | N/A | SELL | | 46 | ACA5354 | TUBE-ANTI RATTLE | QTY. INCREASED AT (C) 482866. | 1/2 | N/A | SELL | | 47 | ACA5227 | PEDAL-ACCELERATOR | LHD. | 1 | N/A | SELL | | | 183045 | PEDAL-ACCELERATOR | RHD. | 1 | N/A | SELL | | 48 | 135373 | GAURD | | 1 | N/A | SELL | | 49 | AAA1768 | CABLE ASSY.-ACCELERATOR | TO (C) 750469. | 1 | N/A | SELL | | | ACA8023 | CABLE ASSY.-ACCELERATOR | FROM (C) 750470. | 1 | N/A | SELL | | | ACA8098 | CABLE ASSY.-ACCELERATOR | FROM (C) 918853. | 1 | N/A | SELL | | 50 | 128761 | GUIDE | | 1 | N/A | SELL | | 51 | ACA5073 | GASKET | | 1 | N/A | SELL | | 52 | AJD1244ZP | BOLT | | 2 | N/A | SELL | | 53 | PWZ103 | WASHER | | 2 | N/A | SELL | | 54 | AJD8012Z | NUT | | 2 | N/A | SELL | | 55 | AJD6106Z | BOLT | | 2 | N/A | SELL | | 56 | LWZ204 | SPRING WASHER, 1/4IN ID | | 2 | N/A | SELL | | 57 | AJD8104Z | NUT | | 2 | N/A | SELL | | 58 | AJD6107Z | BOLT | | 2 | N/A | SELL | | 59 | LWZ204 | SPRING WASHER, 1/4IN ID | | 2 | N/A | SELL | | 60 | 135809 | SPRING-THROTTLE RETURN | TO (C) 448714. | 1 | N/A | SELL | | | 1E5537 | SPRING-THROTTLE RETURN | FROM (C) 750470. | 1 | N/A | SELL | | 61 | ACH8392 | LEVER-SPRING | FROM (C) 448801 TO 750469. | 1 | N/A | SELL | | 62 | ACG5248 | BOLT | FROM (C) 448801 TO (C) 750469. | 1 | N/A | SELL | | 63 | FNZ103 | NUT - 3/16IN UNF | | 1 | N/A | SELL | | 64 | LWZ203 | WASHER, SPRING | | 1 | N/A | SELL | | 65 | ACA5289 | FERRULE PIN | FROM (C) 319429 TO (C) 750469. | 1 | N/A | SELL | | 66 | ACA5123 | BRACKET-SUPPORT | FROM (C) 319429. | 1 | N/A | SELL | | | ACA5378 | BRACKET-SUPPORT | FROM (C) 448801 TO (C) 750469. | 1 | N/A | SELL | | 67 | AJD7042 | WASHER | | 1 | N/A | SELL | | 68 | ACA5293 | WASHER | | 1 | N/A | SELL | | 69 | ACA5256 | WASHER | | 1 | N/A | SELL | | 70 | 50638 | PIN, CABLE | TO (C) 448714. | 2 | N/A | SELL | | | ACC5062 | PIN,CABLE | FROM (C) 448801. | 2 | N/A | SELL | | 71 | PWZ104 | WASHER | | 2 | N/A | SELL | | 72 | AJD8104Z | NUT | TO (C) 448714. | 2 | N/A | SELL | | | FNZ104 | NUT - 1/4IN UNF | FROM (C) 448801. | 2 | N/A | SELL | | 74 | 84180 | BRACKET-SPRING | TO (C) 448714. | 1 | N/A | SELL | | 78 | PWZ203 | WASHER | | 1 | N/A | SELL | | 79 | GPR105 | PEDAL PAD,ACCELERATOR | | 1 | BUY | SELL |
|
