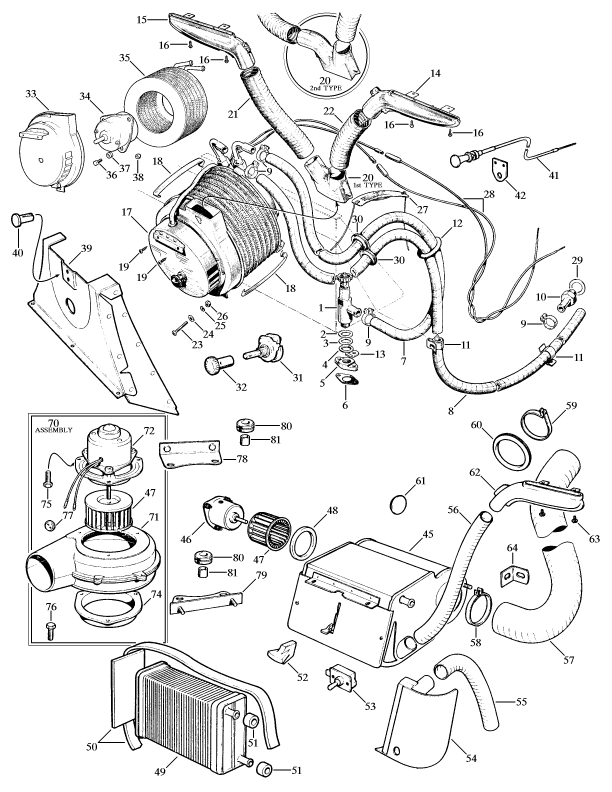

PAGE 34 HEATER ASSEMBLY
Back to INDEX
|
|
| # | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL | | 1 | 88G588 | HEATER VALVE | APPROX. TO-(C) 1039563. | 1 | N/A | SELL | | | 13H5506 | VALVE, HEATER | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | 2 | ACA5172 | SHIM-VALVE ADJUST-028" | | 1 | N/A | SELL | | 3 | ACA5173 | SHIM-VALVE ADJUST-014" | | 1 | N/A | SELL | | 4 | AAA836 | WASHER, TAP SEALING | APPROX. TO-(C) 1039563. | 1 | BUY | SELL | | 5 | ACA5456 | HEATER VALVE BASE | | 1 | N/A | SELL | | 6 | 88G221 | GASKET,HEATER VALVE | | 1 | BUY | SELL | | 7 | GRH1003 | HOSE | SOLD PER FOOT. | A/R | N/A | SELL | | 8 | GRH1003 | HOSE | SOLD PER FOOT. | A/R | N/A | SELL | | 9 | GHC507 | CLIP | ORIGINAL WIRE TYPE. | 4 | N/A | SELL | | | GHC507A | CLIP, HOSE | JUBILEE TYPE, ALTERNATE TO GHC507. | 4 | N/A | SELL | | 10 | AMK8847 | CONNECTOR-HOSE TO RAD | | 1 | N/A | SELL | | 11 | AAA3907 | CLIP | | 2 | N/A | SELL | | 12 | 183765 | RING-RUBBER | | 1 | N/A | SELL | | 13 | ACH9009 | CLIP-PIPE TO TAP | | 1 | N/A | SELL | | 14 | 180204 | DUCT-DEMISTER-R/H | | 1 | N/A | SELL | | 15 | 180205 | DUCT-DEMISTER-L/H | | 1 | N/A | SELL | | 16 | AJD8152Z | SCREW | | 4 | N/A | SELL | | 17 | ADA1813 | HEATER | | 1 | BUY | SELL | | 18 | 27H596 | CLIP-GRILLE SECURING | | 3 | BUY | SELL | | 19 | AJD8452Z | SCREW | | 2 | N/A | SELL | | | PTZ603 | SCREW | FROM (C) 448801. | 2 | N/A | SELL | | 20 | 201143 | ADAPTOR-2-WAY | 1ST TYPE. | 1 | N/A | SELL | | | ADA2636 | ADAPTOR-2-WAY | FROM (C) 514652. | 1 | N/A | SELL | | 21 | 182078 | HOSE-DEMISTER-LONG | | 1 | N/A | SELL | | | ADA1682 | HOSE-DEMISTER-LONG | FROM (C) 311097. | 1 | N/A | SELL | | | ADA2637 | HOSE-DEMISTER-LONG | FROM (C) 514652. | 1 | N/A | SELL | | 22 | 17H1973 | HOSE-DEMISTER-SHORT | | 1 | N/A | SELL | | | ADA2638 | HOSE-DEMISTER-SHORT | FROM (C) 514652. | 1 | N/A | SELL | | 23 | AJD3204Z | SCREW | FIXING, BOTTOM. | 1 | N/A | SELL | | | PMZ312 | SCREW | FIXING, BOTTOM, FROM (C) 448801. | 1 | N/A | SELL | | 24 | PWZ203 | WASHER | | 1 | N/A | SELL | | 25 | LWZ203 | WASHER, SPRING | | 1 | N/A | SELL | | 26 | AJD8012Z | NUT | | 1 | N/A | SELL | | | FNZ103 | NUT - 3/16IN UNF | FROM (C) 448801. | 1 | N/A | SELL | | 27 | CP303 | CAUTION PLATE | CAUTION-IT IS IMPOSSIBLE TO DRAIN.. | 1 | BUY | SELL | | 28 | 185494 | WIRE AND SNAP CONNECTOR | | 2 | N/A | SELL | | 29 | ARH517 | WASHER | | 1 | BUY | SELL | | 30 | 600395 | GROMMET | | 2 | N/A | SELL | | | ADA3598 | CONTROL ASSY-AIR FLOW | | 1 | N/A | SELL | | 31 | 27H4879 | SWITCH | | 1 | BUY | SELL | | 32 | 33GR1114 | KNOB | | 1 | BUY | SELL | | 33 | 33GR315 | COVER | | 1 | BUY | SELL | | 34 | 27H975 | MOTOR | | 1 | BUY | SELL | | 35 | 17H903 | RADIATOR | | 1 | N/A | SELL | | 39 | 33GR6119 | FASCIA-HEATER | | 1 | N/A | SELL | | 40 | BRP1206 | RIVET | | 2 | N/A | SELL | | 41 | ADA3755 | CABLE-AIR FLOW CONTROL | | 1 | BUY | SELL | | | ACA8211 | CABLE-HEATER CONTROL-LHD | FROM (C) 1039564. | 1 | N/A | SELL | | 42 | 33GR218 | BRACKET-CABLE | | 1 | BUY | SELL | | 45 | 33GR1894 | HEATER ASSY-2.8 KW | FROM (C) 1039564. | 1 | N/A | SELL | | | 24A1895 | HEATER ASSY-2.8 KW | FROM (C) 1157131. | 1 | N/A | SELL | | | 24A2732 | HEATER ASSY-3.8 KW | FROM (C) 1060095. ALTERNATE. | 1 | N/A | SELL | | 46 | 27H2189 | MOTOR ASSY | | 1 | N/A | SELL | | 47 | 37H1572 | FAN-SQUIRREL CAGE | | 1/2 | N/A | SELL | | 48 | 33GR195 | SEAL-FAN | | 1 | N/A | SELL | | 49 | 17H8608 | RADIATOR-WITH SEALS | FOR 33GR1894. | 1 | N/A | SELL | | | 37H3928 | RADIATOR-LESS SEALS | FOR 24A1895. | 1 | N/A | SELL | | | 17H8607 | RADIATOR | FOR 24A2732. | 1 | N/A | SELL | | 50 | 33GR161 | PACKING-RADIATOR | | 1 | N/A | SELL | | 51 | 33GR196 | SEAL-RADIATOR | | 2 | N/A | SELL | | 52 | 24A151 | KNOB-DEFLECTOR CONTROL | | 1 | N/A | SELL | | 53 | 37H4067 | SWITCH | FOR 33GR1894 AND 24A2732. | 1 | N/A | SELL | | | 27H8047 | DUST BOOT, H/BRK LEVER | FOR 24A1895. | 1 | N/A | SELL | | 54 | 24A1289 | COVER-DEMISTER HOSE-R/H | | 1 | N/A | SELL | | | 24A1290 | COVER-DEMISTER HOSE-L/H | | 1 | N/A | SELL | | 55 | ACA8168 | HOSE-DUCT TO TOEBOARD | | 2 | N/A | SELL | | 56 | ACA8167 | HOSE-DEMISTER | | 2 | N/A | SELL | | 57 | ACA8217 | HOSE-HEATER TO BLOWER | | 1 | N/A | SELL | | | 24A1977 | HOSE-BLOWER TO GRILLE | | 1 | N/A | SELL | | | 24A1975 | HOSE-AIR INTAKE | WHEN NO BLOWER IS ATTACHED. | 1 | N/A | SELL | | 58 | GHC3036 | CLIP 3 3/4-4 1/2 INS | | A/R | N/A | SELL | | 59 | 33GR312 | CLAMP -FRESH AIR DUCT | | A/R | BUY | SELL | | 60 | 24A2195 | GROMMET-FIREWALL | | 1 | N/A | SELL | | 61 | 600399 | PLUG 1' | FOR FRESH AIR UNIT. | 2 | N/A | SELL | | 62 | 33GR204 | DUCT-DEMISTER-R/H | FROM (C) 1039564. | 1 | N/A | SELL | | | 33GR205 | DUCT-DEMISTER-L/H | | 1 | N/A | SELL | | 63 | AJD8152Z | SCREW | | 4 | N/A | SELL | | 64 | 33GR219 | BRACKET-MOUNTING | | 2 | N/A | SELL | | 70 | 24A1405 | BLOWER ASSY | | 1 | N/A | SELL | | 71 | 17H819 | CASING HEATR/FAN MID | | 1 | N/A | SELL | | 72 | 37H4216 | MOTOR-BLOWER | | 1 | N/A | SELL | | 74 | 17H8662 | ADAPTOR-INLET | | 1 | N/A | SELL | | 78 | 33GR220 | BRACKET-MOUNTING-TOP | | 1 | N/A | SELL | | 79 | 33GR221 | BRACKET-MOUNTING-BOTTOM | | 1 | N/A | SELL | | 80 | 33GR432 | GROMMET | | 4 | N/A | SELL | | 81 | 33GR436 | SPACER | | 4 | N/A | SELL |
|
